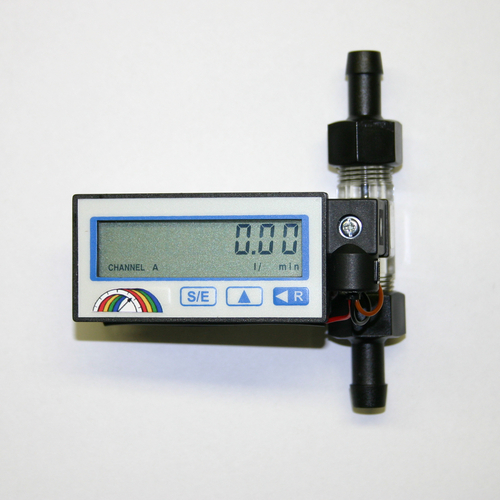

With this innovation, Reichelt Chemietechnik presents a flowmeter meeting highest requirements, with integrated data display indicating the instantaneous value and the volume passed through. The measuring range lies between 0.1 to 25 ml/min, the permissible temperature range is -20 °C to +100 °C with a maximum working pressure of 25 bar. Particular mention deserves its high measuring accuracy which is ±3 % of the instantaneous value at a viscosity up to approx. 15 cSt.
The mode of operation is simple as well as ingenious! The rotor contained in the flowmeter is set in a rotary motion by the medium to be measured. A Hall sensor scans the rotor and generates a frequency signal according to the flow rate. The signal is then analyzed and digitally indicated.
The flowmeter is resistant to many inorganic and organic media. The choice of materials provides the most accurate information about this. The housing is made of PA12, the rotor, however, is made of PTFE.
Further specifications can be found:
THOMAFLUID®-Turbine Flowmeters – Digital
