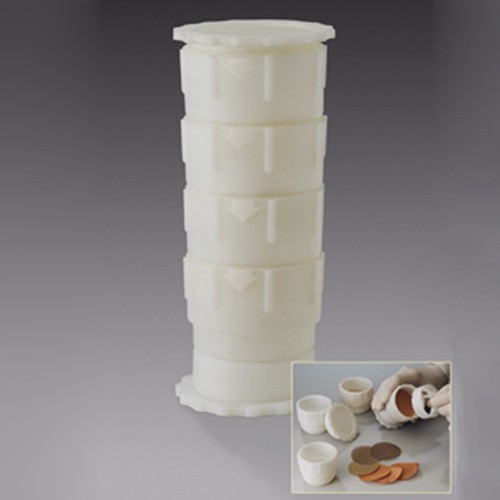

Mini Sieve Set

Application area Particle size analysis. Particle size fractionating of small and smallest... more

Application area

Particle size analysis.

Particle size fractionating of small and smallest amounts of substances.

Product specification

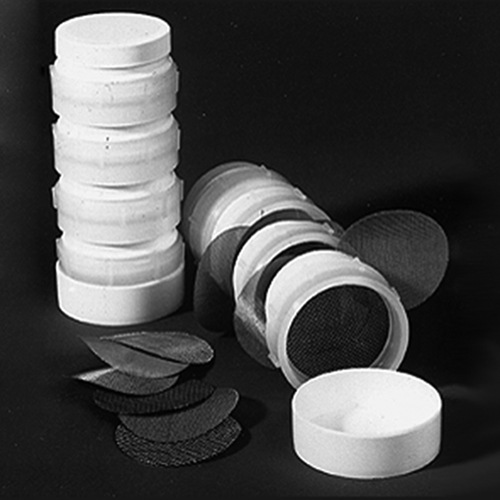

Stackable precision sieves for arranging of sieve combinations. True to size interchangeable sieve segments with toollessly exchangeable stable strainers of different mesh widths according to U.S. ASTM-standards, tightly closing cover and bottom receiver.

Technical specification

Material: Sieve segments, cover, receiver and screw fitting for strainers: polypropylene; Strainers: phosphor bronze

Content of

supply standard set: 4 pieces of sieve segments with screw fittings for strainers, 8 pieces of different strainers in mesh-dimensions, one cover and one bottom receiver

Dimension:

Sieve segments: internal diameter 51 mm, external diameter 65 mm

Stainers: mesh widths 24; 35; 45; 60; 80; 120; 170, and 230 mesh

Stacking height: 152 mm (standard set with 4 sieves, cover and bottom receiver)

No additional information available.
Item Image Unit
set
Price
Euro*
Buy
83261
1 177.00
