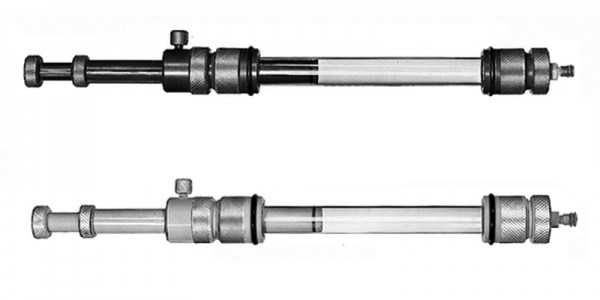

Chromatography Column with Flow Adapter

Product specification Type: Standard design (ST) with flow adapter V: The columns consist of... more

Product specification

Type: Standard design (ST) with flow adapter V: The columns consist of glass bodies with PVC caps, a flow adapter made of PVC and a bottom end plate made of PVC.

Type: Solvent-resistant design (SR) with flow adapter SR/V: The columns are made of glass bodies with PTFE or stainless steel caps, a flow adapter made of PTFE or polypropylene (PP), and a bottom end plate made of PTFE or polypropylene (PP). Columns in SR design and all parts coming into contact with media are solvent-resistant. Size of tubing connections: Size D, outside diameter 1/8", 3.2 mm.

General Information A series of chromatography columns in eight different sizes for... more

Close menu

General Information

A series of chromatography columns in eight different sizes for analytical and preparative purposes. The glass bodies are made of borosilicate glass, flange-connected on both sides, and bear fixedly two caps with the sealing O-rings belonging to it. Caps with the largest diameters of 75 and 100 mm resp. have threaded bolts made of V2A and are screwed with nuts to the end plates. Caps and end plates of smaller sizes are screwed together with threads. In this case the caps bear the sealing rings of the cooling jacket. The collars of the cooling jacket fit tightly on the sealing rings of the cooling jacket. Is no cooling jacket mounted, the sealing rings serve as shock absorbers to avoid break when the column is put down on the laboratory desk. Diameters of 75 mm and 100 mm resp. are not supplied with cooling jacket. For temperature control the use of Calorex heat-exchange and cooling tubing (item 93168) is recommended.

The bottom end plates bear a PTFE fabric with a mesh size of approx. 10 µm as support for the adsorbent material. The fabric is fixed by means of a locking ring and is placed on a PTFE grid of larger mesh size. In this grid the fluid flows with minimum dead volume to the capillary bore of the end plate.

The column end plates have thread bores for accommodation of MULTICHROM connections, the upper end plate having an additional one for the bleed screw. The central bore has an internal diameter of 1.0 mm.

The fluid contacting parts of the column, the top and bottom ends, are usually made of PVC. For use with liquids, to which these materials are not resistant, ends made of PTFE are to be used. Therefore, only these two exchange parts are required for resetting of the column, and already with the usual caps made of PVC a substantial solvent resistance is obtained. When working for a longer time with media particularly aggressive to PVC, such as chloroform, dimethylformamide etc, the glass bodies with caps made of stainless steel, PTFE or PP have to be used.

We strongly emphasize that standard seals are made of the materials FPM and NBR. It is possible to substitute certain seals for those made the material FFKM. The THOMACHROM^® system with its many combinations offers appropriate instrumental solutions for pressures up to 15 bar and for all solvents, particularly for preparative purposes.

Item	Type¹	Innen-Ø Säule mm	Länge mm	max. Betr.-Druck² bar	Säulenvolumen ml	Einheit Stück	Price Euro*
82184	ST	6	150	15	4,2	1	701.00
82185	ST	6	300	15	8,4	1	717.00
82186	ST	9	150	12	9,5	1	707.00
82187	ST	9	300	12	19	1	745.00
82188	ST	9	600	12	38	1	800.00
82189	ST	15	300	10	53	1	756.00
82190	ST	15	600	10	106	1	882.00
82191	ST	15	1.000	10	177	1	953.00
82192	ST	20	300	8	94	1	844.00
82193	ST	20	600	8	188	1	874.00
82194	ST	20	1.000	8	313	1	1,093.00
82195	ST	25	300	7	147	1	904.00
82196	ST	25	600	7	294	1	1,021.00
82197	ST	25	900	7	441	1	1,139.00
82198	ST	50	600	4	1.176	1	1,374.00
82199	ST	50	900	4	1.764	1	1,415.00
82200	ST	50	1.500	4	2.940	1	1,596.00
82201	ST	75	900	4	4.298	1	2,318.00
82202	ST	75	1.500	4	7.155	1	2,493.00
82203	ST	75	2.400	4	11.448	1	2,654.00
82204	ST	100	1.200	3	10.385	1	3,267.00
82205	ST	100	2.100	3	18.165	1	3,543.00
82206	ST	100	3.000	3	25.950	1	4,482.00
82208	SR	6	150	15	4,2	1	895.00
82209	SR	6	300	15	8,4	1	942.00
82210	SR	9	150	12	9,5	1	939.00
82211	SR	9	300	12	19	1	969.00
82123	SR	9	600	12	38	1	1,019.00
82212	SR	15	300	10	53	1	981.00
82213	SR	15	600	10	106	1	1,062.00
82214	SR	15	1.000	10	177	1	1,118.00
82215	SR	20	300	8	94	1	1,070.00
82216	SR	20	600	8	188	1	1,199.00
82217	SR	20	1.000	8	313	1	1,311.00
82218	SR	25	300	7	147	1	1,259.00
82219	SR	25	600	7	294	1	1,366.00
82220	SR	25	900	7	441	1	1,467.00
82221	SR	50	600	4	1.176	1	2,042.00
82222	SR	50	900	4	1.764	1	2,121.00
82223	SR	50	1.500	4	2.940	1	2,222.00
82224	SR	75	900	4	4.298	1	3,002.00
82225	SR	75	1.500	4	7.155	1	3,109.00
82226	SR	75	2.400	4	11.448	1	3,223.00
82227	SR	100	1.200	3	10.385	1	4,206.00
82228	SR	100	2.100	3	18.165	1	4,552.00
82229	SR	100	3.000	3	25.950	1	5,485.00
