Product specification
Chemical features:
Good resistance to weak alkalis and acids as well as inorganic salt solutions; limited resistance to organic acids, mineral oils, fats and oils.
Material specification:
PVC products usually feature quite a good resistance to media and weather, and are distinguished by their flame resistance.
Low water absorption
Good resistance to UV radiation
Good electrical insulation
PVC is not suitable for use with polar solvents due to its polar structure, therefore only limited resistance to hydrolysis.
In contrast to rigid PVC (PVC-U), plasticized PVC (PVC-P) is only moderately suitable for use with mineral oils and fats as well as aliphatic hydrocarbons (e.g. alcohols) due to the used plasticizers.
Can be bonded, welded and cutted
Up to +40 °C rubbery-elastic, leather-like
Technical specification

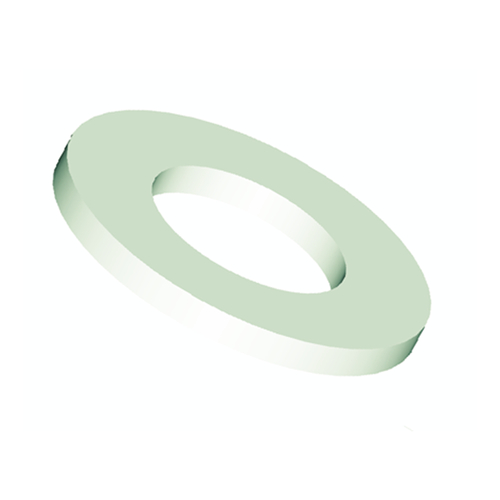

Material: PVC-P (polyvinyl chloride, soft)
Colour: natural
Density: 1.17 - 1.35 g/cm3
Shore hardness A: 74° - 76°
Temperature range: -20 to +55 °C
Tensile strength: 16 - 20 N/mm2
Elongation at break: 170 - 400 %
Surface resistance: approx. 1011 Ohm (DIN 53482)
Volume resistivity: >1011 Ohm x cm (DIN 53482)
Dielectric strength: 24 - 34 kV/mm (DIN 53481)
Dielectric constant: 4.2 - 8 at 50 Hz
Burning behavior: Self-extinguishing
Regulations: similar to DIN 9021, ISO 7093

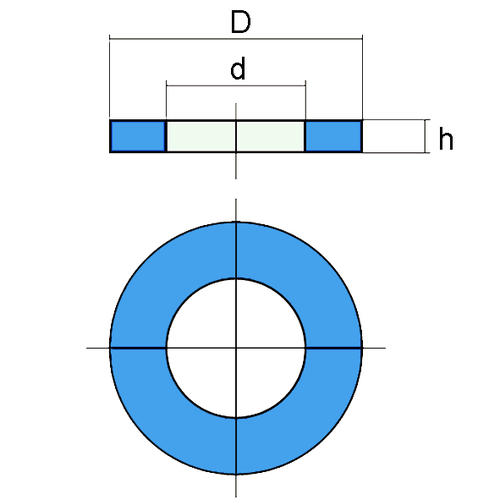

| Item | Image | For thread |
d mm
|
D mm
|
h mm
|
Einheit Stück
|
Price Euro* | Buy |
|---|
Item
|
|
For thread
|
d mm
|
D mm
|
h mm
|
Einheit Stück
|
Price Euro* |
Buy
|
|---|---|---|---|---|---|---|---|---|
| 338295 |
|
M3 | 3,5 | 9 | 0,8 | 50 | 22.00 | |
| 338296 |
|
M3 | 3,5 | 9 | 0,8 | 100 | 33.00 | |
| 338297 |
|
M4 | 4,6 | 15 | 1,5 | 50 | 24.00 | |
| 338298 |
|
M4 | 4,6 | 15 | 1,5 | 100 | 41.00 | |
| 338299 |
|
M5 | 5,3 | 17 | 1,5 | 50 | 37.00 | |
| 338300 |
|
M5 | 5,3 | 17 | 1,5 | 100 | 60.00 | |
| 338301 |
|
M6 | 6,8 | 18 | 1,5 | 50 | 41.00 | |
| 338302 |
|
M6 | 6,8 | 18 | 1,5 | 100 | 67.00 | |
| 338303 |
|
M8 | 8,5 | 25 | 2,1 | 50 | 71.00 | |
| 338304 |
|
M8 | 8,5 | 25 | 2,1 | 100 | 122.00 | |
| 338305 |
|
M10 | 10,5 | 30 | 2,5 | 50 | 86.00 | |
| 338306 |
|
M10 | 10,5 | 30 | 2,5 | 100 | 146.00 | |
| 338307 |
|
M12 | 13 | 40 | 3 | 25 | 60.00 | |
| 338308 |
|
M12 | 13 | 40 | 3 | 50 | 105.00 |
