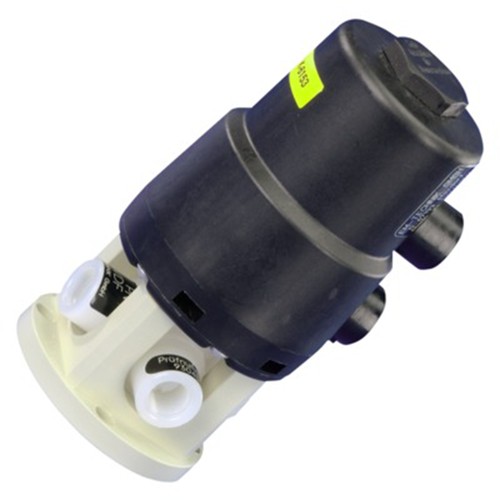

High-Quality 4-Way Ball Valve with Pneumatic Actuator - injection-molded

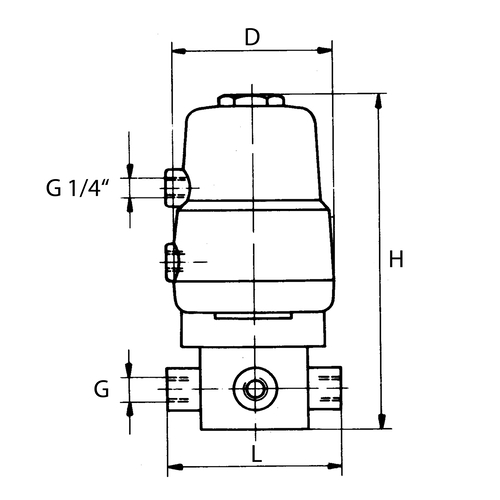

Item |
NW mm
|
Internal thread |
D mm
|
H mm
|
Funktion | Werkstoff |
Einheit Stück
|
Price Euro* |
Buy |
---|---|---|---|---|---|---|---|---|---|
304993 | 4 | G 1/4" | 70 | 146 | A | PP | 1 | 951.00 | |
304994 | 4 | G 1/4" | 70 | 146 | B | PP | 1 | 951.00 | |
304995 | 4 | G 1/4" | 70 | 146 | C | PP | 1 | 951.00 | |
304996 | 6 | G 1/2" | 96 | 177,5 | A | PP | 1 | 1,400.00 | |
304997 | 6 | G 1/2" | 96 | 177,5 | B | PP | 1 | 1,400.00 | |
304998 | 6 | G 1/2" | 96 | 177,5 | C | PP | 1 | 1,400.00 | |
304999 | 4 | G 1/4" | 70 | 146 | A | PVDF | 1 | 988.00 | |
305000 | 4 | G 1/4" | 70 | 146 | B | PVDF | 1 | 988.00 | |
305001 | 4 | G 1/4" | 70 | 146 | C | PVDF | 1 | 988.00 | |
305002 | 6 | G 1/2" | 96 | 177,5 | A | PVDF | 1 | 1,604.00 | |
305003 | 6 | G 1/2" | 96 | 177,5 | B | PVDF | 1 | 1,604.00 | |
305004 | 6 | G 1/2" | 96 | 177,5 | C | PVDF | 1 | 1,604.00 | |
305005 | 4 | G 1/4" | 70 | 146 | A | PFA | 1 | 1,357.00 | |
305006 | 4 | G 1/4" | 70 | 146 | B | PFA | 1 | 1,357.00 | |
305007 | 4 | G 1/4" | 70 | 146 | C | PFA | 1 | 1,357.00 | |
305008 | 6 | G 1/2" | 96 | 177,5 | A | PFA | 1 | 2,084.00 | |
305009 | 6 | G 1/2" | 96 | 177,5 | B | PFA | 1 | 2,084.00 | |
305010 | 6 | G 1/2" | 96 | 177,5 | C | PFA | 1 | 2,084.00 |
