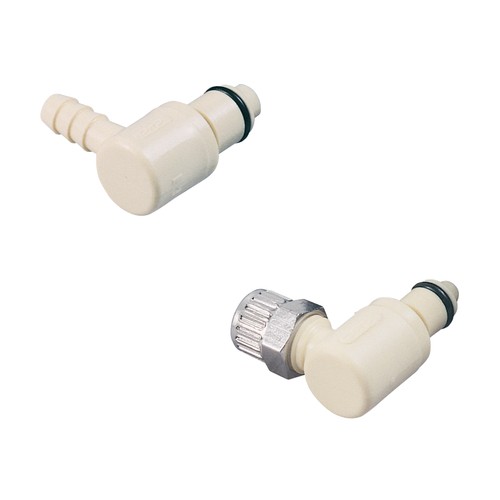

PP Elbow Quick-Disconnect Nipple, NW 6.4 mm

Product specification Male coupling part. With port or shut-off and hose nozzle or pipe... more

Product specification

Male coupling part. With port or shut-off and hose nozzle or pipe screwed fitting for piping connection. Can be combined with all female coupling parts of nominal width 6.4 mm.

General Information Quick-Disconnect Coupling THOMAFLUID ® -quick-disconnect coupling... more

General Information Quick-Disconnect Coupling

THOMAFLUID®-quick-disconnect coupling systems are excellently suited for connecting and disconnecting of tubes, apparatuses etc. The quick-disconnect couplings are easy to operate, connecting and disconnecting can be done by one hand. The coupling is self-locking when the nipple is plugged-in. For disconnection a short thumb pressure on the lock is sufficient to pull out the nipple easily. All nipples are fitted with an easily interchangeable, reliably sealing O-ring.

A complete operable THOMAFLUID®-quick-disconnect coupling system consists of a coupling part and a nipple part, both parts may be fitted with valves. A complete quick-disconnect coupling system locking at one side consists of a coupling part with shut-off and a nipple part with port, or a coupling part with port and a nipple part with shut-off. To get a coupling locking on both sides, a coupling part as well as a nipple part, both with shut-off, have to be obtained.

General Information PP

Use for microbiological testing equipment, electroplating liquids, sterilisation equipment, water pollution analysis.

PP allows higher chemical resistances for more demanding applications compared to POM. The coupling parts are also sterilizable with gamma rays.

Resistant to oils, petrol, acids etc.

General Information 6.4 mm nominal width

The 6.4 mm nominal size couplings cover a whole range of standard applications such as for battery filling systems, disinfectant systems, inkjet printers, dosing pumps, for pharmaceutical production or chemical processing in the semiconductor industry.

Various connection combinations from hose nozzles to pipe connections to internal and external threads.

With the release button, separation with one hand is possible and therefore easier to use than with brass couplings.

No leaks, shorter installation length, faster assembly.

Audible "click" when connecting.

Can also be combined with metal couplings with a nominal width of 6.4 mm.

Material:

Valve body: PP (polypropylene)

Gaskets: EPDM (ethylene-propylene-diene rubber)

Valve spring: stainless steel 316

Colour: beige

Nominal width: 6.4 mm

Plug diameter: approx. 11.2 mm

Temperature range: 0 to +70 °C

Max. operating pressure: 8.3 bar at +20 °C

Item Image Connection Ventil Länge
mm
Einheit
Stück
Price
Euro*
Buy
10279
PP Elbow Quick-Disconnect Nipple, NW 6.4 mm PP Elbow Quick-Disconnect Nipple, NW 6.4 mm
PP Elbow Quick-Disconnect Nipple, NW 6.4 mm PP Elbow Quick-Disconnect Nipple, NW 6.4 mm
Tülle 6,4 mm ohne 36 1 20.00
10280
PP Elbow Quick-Disconnect Nipple, NW 6.4 mm PP Elbow Quick-Disconnect Nipple, NW 6.4 mm
PP Elbow Quick-Disconnect Nipple, NW 6.4 mm PP Elbow Quick-Disconnect Nipple, NW 6.4 mm
Tülle 9,5 mm ohne 36 1 20.00
10282
PP Elbow Quick-Disconnect Nipple, NW 6.4 mm PP Elbow Quick-Disconnect Nipple, NW 6.4 mm
PP Elbow Quick-Disconnect Nipple, NW 6.4 mm PP Elbow Quick-Disconnect Nipple, NW 6.4 mm

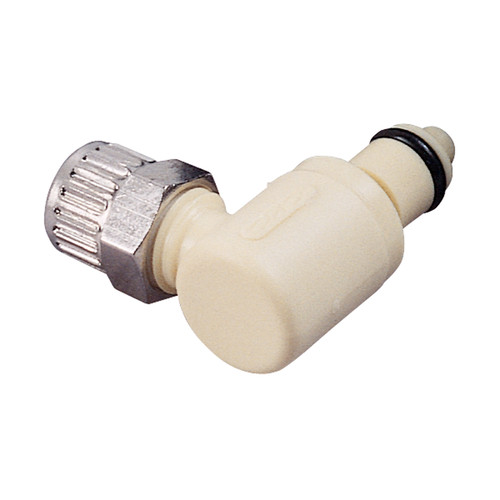

Rohr 9,5 mm ohne 34 1 24.00
51392
PP Elbow Quick-Disconnect Nipple, NW 6.4 mm PP Elbow Quick-Disconnect Nipple, NW 6.4 mm
PP Elbow Quick-Disconnect Nipple, NW 6.4 mm PP Elbow Quick-Disconnect Nipple, NW 6.4 mm

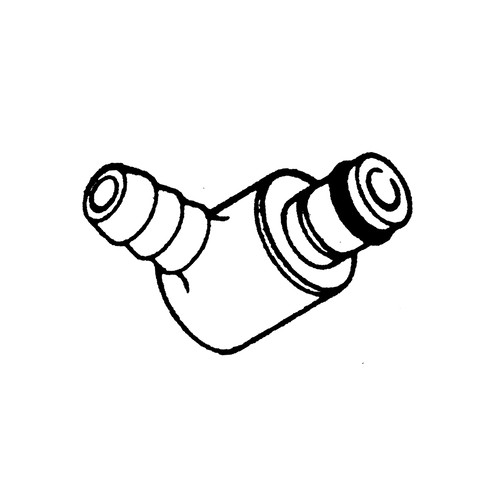

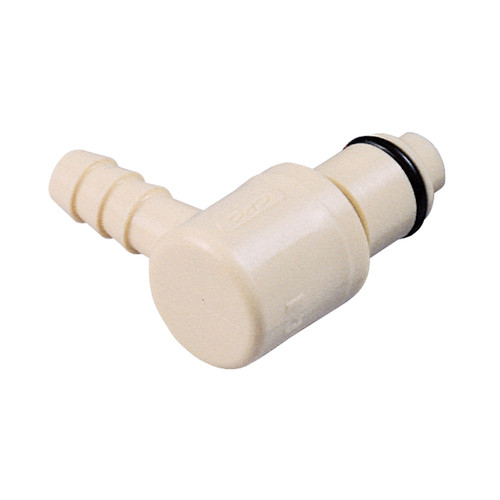

Tülle 6,4 mm mit 36 1 27.00
51393
PP Elbow Quick-Disconnect Nipple, NW 6.4 mm PP Elbow Quick-Disconnect Nipple, NW 6.4 mm
PP Elbow Quick-Disconnect Nipple, NW 6.4 mm PP Elbow Quick-Disconnect Nipple, NW 6.4 mm
Tülle 9,5 mm mit 36 1 27.00
10284
PP Elbow Quick-Disconnect Nipple, NW 6.4 mm PP Elbow Quick-Disconnect Nipple, NW 6.4 mm
PP Elbow Quick-Disconnect Nipple, NW 6.4 mm PP Elbow Quick-Disconnect Nipple, NW 6.4 mm

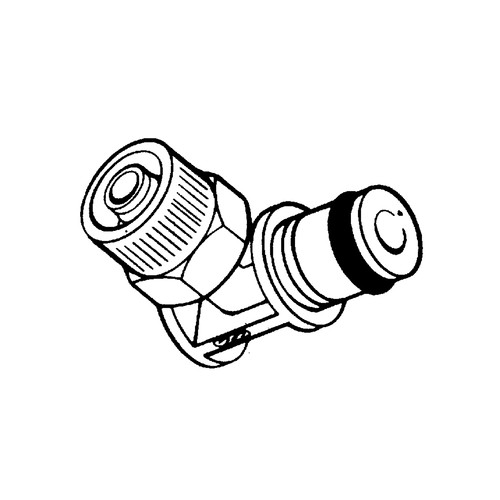

Rohr 9,5 mm mit 34 1 30.00
