Product specification

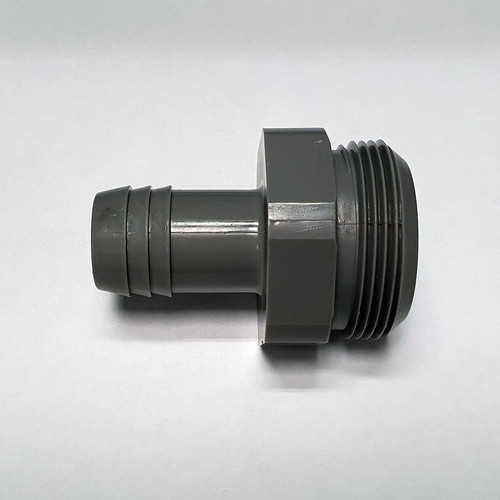

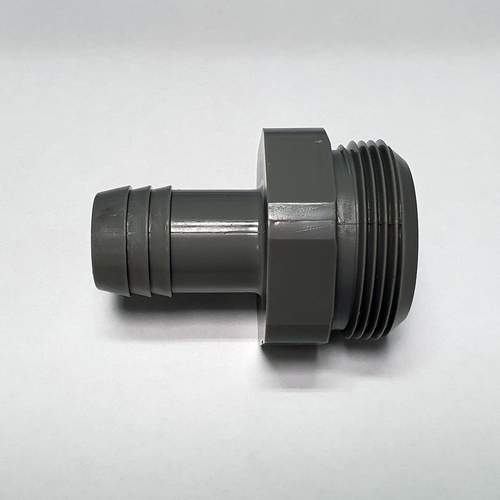

Straight, pressure loadable adapter for connection of tubing with all G 1 1/2 inch-dimensioned THOMAFLUID®-POM quick-disconnect couplings and nipples (items 16032, 16034, 16039, 16041), hose nozzle for pilot plant oriented tubing diameters of 25 to 42 mm on one side, external thread 11/2" on the other side, made of resistant, grey-dyed polyacetal.
Resistant to alcohol, aldehydes, petrol, ethers, esters, glykols and motor oils, within the pH range of 4 to 9 also to alkalis and acids.
Technical specification
Material: POM, grey (polyacetal, polyoxymethylene)
Connection: one side pipe screwed fitting with external thread G 1 1/2" according to DIN ISO 228, other side hose nozzle
Temperature range: -40 to +80 °C
Max. operating pressure: 10 bar at +20 °C
General Information Quick-Disconnect Coupling
THOMAFLUID®-quick-disconnect coupling systems are excellently suited for connecting and disconnecting of tubes, apparatuses etc. The quick-disconnect couplings are easy to operate, connecting and disconnecting can be done by one hand. The coupling is self-locking when the nipple is plugged-in. For disconnection a short thumb pressure on the lock is sufficient to pull out the nipple easily. All nipples are fitted with an easily interchangeable, reliably sealing O-ring.
A complete operable THOMAFLUID®-quick-disconnect coupling system consists of a coupling part and a nipple part, both parts may be fitted with valves. A complete quick-disconnect coupling system locking at one side consists of a coupling part with shut-off and a nipple part with port, or a coupling part with port and a nipple part with shut-off. To get a coupling locking on both sides, a coupling part as well as a nipple part, both with shut-off, have to be obtained.
General Information POM
For compressed air, gases, liquids, and vacuum, floor cleaning equipment, filtration of deionized water, dispensing equipment, automated machines, compression therapy, leak detectors.
The coupling parts (couplings and nipples) are made of thermoplastic acetal in the injection-moulding process. They are robust and usable with the most mild chemicals.
Resistant to alcohol, aldehydes, petrol, ethers, esters, glykols and motor oils, within the pH range of 4 to 9 also to alkalis and acids.
General Information 30 mm nominal width
Macro high-flow quick-disconnect coupling parts.
Pressure loadable plug-in coupling parts with very large through bore, made of resistant, gray-dyed polyacetal, for pipe screwed fittings or for connection of tubing with THOMAFLUID®-tube connecting pieces, items 16035 to 16038.
Material:
Valve body: POM, grey (polyacetal, polyoxymethylene)
Gasket: NBR (butadiene-rubber)
Colour: grey
Nominal width: 30 mm
Temperature range: -20 to +80 °C
Max. operating pressure: 10 bar at +20 °C
Cross sectional area of port: 710 mm2

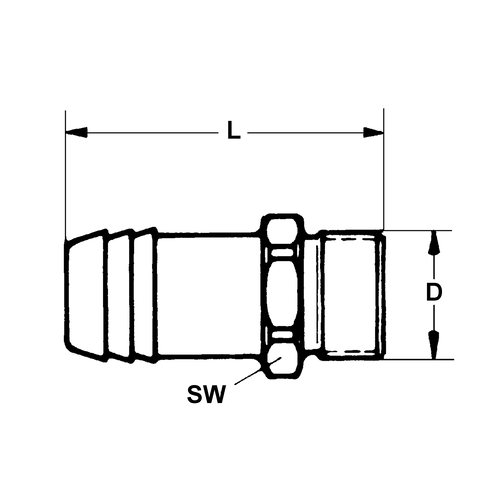

| Item | Image |
Tubing inside Ø mm
|
Außengewinde |
NW mm
|
D mm
|
Länge mm
|
Einheit Stück
|
Price Euro* |
Buy |
|---|---|---|---|---|---|---|---|---|---|
| 16035 |
|
27 | G 1 1/2" | 19 | 30 | 73 | 1 | 25.00 | |
| 16036 |
|
34 | G 1 1/2" | 22 | 37 | 77 | 1 | 25.00 | |
| 16037 |
|
40 | G 1 1/2" | 28 | 43 | 94 | 1 | 25.00 | |
| 16038 |
|
45 | G 1 1/2" | 32 | 48 | 94 | 1 | 25.00 | |
