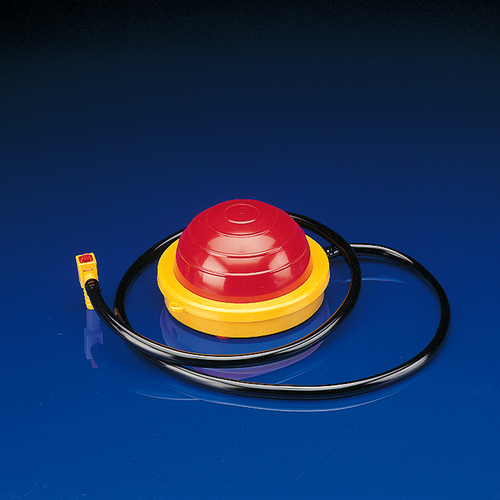

Foot Pump - Stopper Size 30-70 mm

Product specification For drums, demijohns, barrels Foot pumps with delivery tubes made of... more

Product specification

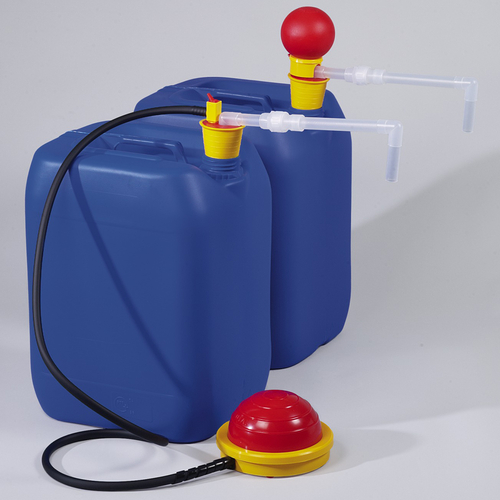

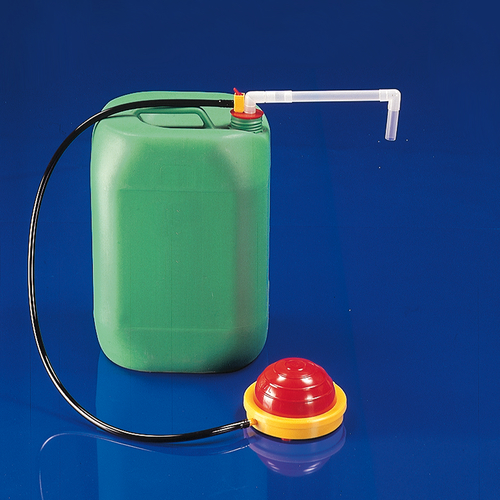

For drums, demijohns, barrels

Foot pumps with delivery tubes made of stainless steel include additionally three stoppers made of LDPE (Ø -size: 48 - 56 mm, 54 - 62 mm, 60 - 68 mm).

General Information For transferring and filling of all kinds of fluids, acids, alkalis and... more

General Information

For transferring and filling of all kinds of fluids, acids, alkalis and many solvents, consisting of a ball pump or foot bellows, with a set of pipes made of PP (polypropylene), PVDF (polyvinylidene fluoride) or stainless steel and stopper made of non-rigid PVC. Slight pumping produces an excess pressure in the storage container forcing the liquid through the pipes into the filling vessel.

Chemical characteristics:

PP is resistant to weak acids, alkalis and detergents

PVDF is well suitable for acids, alkalis and chlorine bleach, not for heavily oxidising acids and alkalis

Stainless steel is well suitable for liquids that are not easily combustible in Hazard Category AIII (VbF), unsuitable for corrosive media.

Item Image Material delivery tube Tauchrohrtiefe
mm
Rohr Außen-Ø
mm
max. Förderleistung
l/min.
Einheit
Stück
Price
Euro*
Buy
60845
PP 700 15 20 1 132.00
60846
PP 700 18 26 1 160.00
60847
PP 700 22 30 1 176.00
60848
PVDF 700 16 20 1 267.00
60849
Edelstahl 900 18 26 1 283.00
