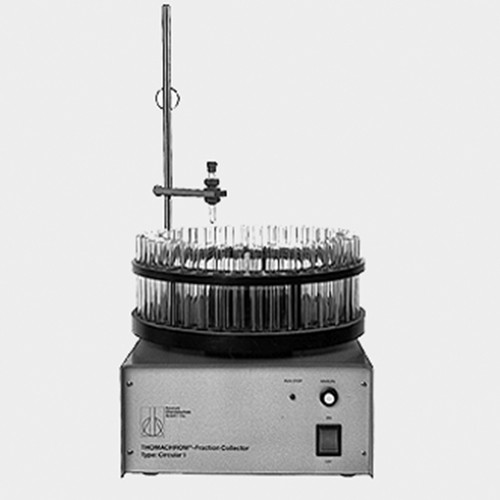

Fraction Collector Circular-I-Micro

Fraction Collector Circular-I-Micro
Application area Multiple chromatography, chromatography with small columns in the research... more

Application area

Multiple chromatography, chromatography with small columns in the research laboratory, practical training, routine and industrial laboratories, and for applications such as metering and sample application independently of chromatography.

Product specification

Fraction collector with micro-carrousel made of polypropylene for 2 x 40 concentrically arranged micro test tubes. The micro-carrousel is easily to be exchanged by a standard or macro-carrousel.

The control is effected externally via three optionally available control units. Connecting cable with safety plug, length 1.5 m, signal cable for control unit, length 1.5 m.

Technical specification

Capacity: 2 x 40 micro test tubes: 10 mm outside diameter, 100 mm length

Metering: drop, siphon, second and/or minute metering

Voltage: 220 V / 50 Hz

Housing: synthetic resin-coated

Dimensions of housing: 200 x 200 x 105 mm (L x W x H)

Dimensions of carrousel: outside diameter: 260 mm, height: 80 mm

Weight with carrousel: 4.8 kg

No additional information available.
Item Image Unit
piece
Price
Euro*
Buy
90720
1 1,419.00
