Product specification

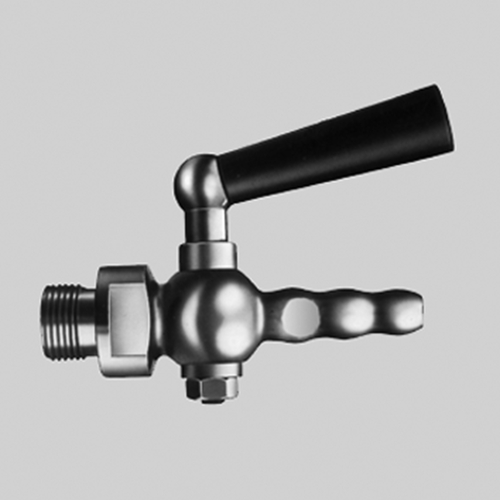

Robust cock housing, cock plug with large outside diameter ensuring ample overlap and reliable sealing. Cock connection with threaded adapter (threaded spigot) on one side, with straight hose connector on the other side.
Suitable for gases, liquids, and vapours up to PN 10.
Working temperature for stainless steel (1.4571): -5 to +130 °C.

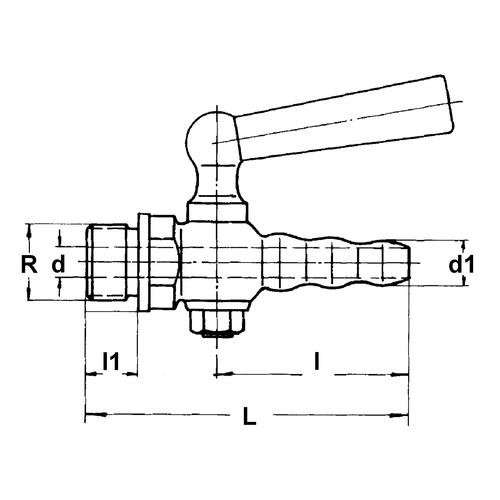

| Item | Image | External thread |
d1 mm
|
NW mm
|
l mm
|
l1 mm
|
L mm
|
Einheit Stück
|
Price Euro* |
Buy |
|---|---|---|---|---|---|---|---|---|---|---|
| 54518 |
|
R 1/4" | 8 | 4 | 39 | 10 | 67 | 1 | 116.00 | |
| 54519 |
|
R 3/8" | 10 | 6 | 45 | 12 | 78 | 1 | 143.00 | |
| 54520 |
|
R 1/2" | 12 | 8 | 52 | 14 | 89 | 1 | 176.00 | |
| 54521 |
|
R 3/4" | 18 | 12 | 64 | 16 | 112 | 1 | 241.00 | |
| 54522 |
|
R 1" | 24 | 14 | 80 | 20 | 252 | 1 | 346.00 | |
