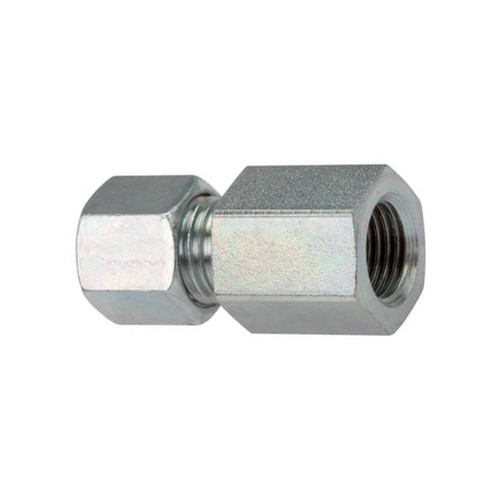

Straight Pipe Screwed Fitting with Female Thread made of Stainless Steel

Product specification G-, or M-internal thread on one side metric pipe connection on the... more

Product specification

G-, or M-internal thread on one side metric pipe connection on the other side

Resists dynamic loads such as vibrations and pulsations

Can be loosened and screwed back as often as you like

Due to a silver coating a lubrication of the nut thread during initial assembly is not necessary

Required pipe quality: heat treated, seamless stainless steel pipes (1.4571) according to DIN EN ISO 1127 with tolerance class D4 / T3, the hardness should not be more than Rockwell HRB 90.

Technical specification

Material: stainless steel 1.4571

Temperature range: -60 to +400 °C

Vakuumhermeticity: Q <10⁸ mbar l/s

Regulations: DIN EN ISO 8434-1 (DIN 2353)

General information cutting ring fittings Application area Gas- and water applications,... more

Close menu

General information cutting ring fittings

Application area

Gas- and water applications, chemical and petrochemical apparatus and plant construction, pharmaceutical industry, paper- and plastics industry, harbour- and Watergates, shipbuilding, aviation, offshore- plant construction, measuring and control technology, hydraulic systems with increased corrosive stress.

Product specification

Cutting ring tube fittings according to EN ISO 8434-1 / DIN 2353 serve as positive and non-positive high pressure connections.

When the union nut is tightened, the hardened cutting ring tapers and cuts into the tube. A clearly visible bead is created in front of the cutting edge. For a correct seating of the cutting ring, it is important that the tube, which is cut off at right angles, lies against the cone stop.

In the final phase of the cutting process, the angle of the cutting edge causes the cutting point on the pipe to be work hardened. Due to the design of the cutting ring, the cutting depth is limited and thus prevents pipes with thin walls from being cut through.

The cutting ring screw connection can be loosened and re-installed as often as required.

Assembly

1. Saw off the pipe at right angles and lightly deburr inside and out and clean it at all. Do not use pipe cutters. For thin-walled or soft tubes use a reinforcing sleeve.

2. Lubricate thread and cone of nozzle, union nut inside and cutting ring with care.

3. Put the union nut and cutting ring onto the pipe. Pay attention to the correct position of the cutting ring - otherwise incorrect assembly.

4. Turn the union nut as far as possible by hand. Mark the union nut to check the prescribed turns. Press tube into cone until stop. Tighten union nut with wrench approx. 1 turn. Tube must not rotate.

5. To check the assembly, loosen the union nut. The raised pipe material must cover the front cutting ring surface. If not, follow suit easily. Due to the resilience of the cutting ring this can still turn - no malfunction.

6. Final assembly: Mount the union nut on the connection piece until there is a noticeable increase in force. Then tighten with 1/4 - 1/2 turn (compression fitting).

Attention

Assembly of stainless steel fittings only with the aid of suitable lubricants.

For repeated assembly and disassembly there is a mounting paste on request.

Item	Pipe outside Ø mm	Innengewinde	max. Betr.-Druck¹ bar	Einheit Stück	Price Euro*
54494	6	M10 x 1	315	1	75.00
54495	6	M12 x 1,5	630	1	113.00
54496	6	G 1/8"	315	1	65.00
54497	6	G 1/8"	630	1	122.00
54498	6	G 1/4"	315	1	76.00
54499	6	G 1/4"	630	1	111.00
54543	8	M12 x 1,5	315	1	95.00
54544	8	M14 x 1,5	630	1	126.00
54545	8	G 1/4"	315	1	81.00
54546	8	G 1/4"	630	1	103.00
54547	8	G 3/8"	315	1	97.00
54548	10	M14 x 1,5	315	1	99.00
54549	10	M16 x 1,5	630	1	152.00
54550	10	G 1/4"	315	1	85.00
54551	10	G 3/8"	315	1	99.00
54552	10	G 3/8"	630	1	114.00
54553	10	G 1/2"	315	1	164.00
54554	12	M16 x 1,5	315	1	127.00
54555	12	M18 x 1,5	630	1	157.00
54556	12	M20 x 1,5	315	1	148.00
54557	12	M20 x 1,5	630	1	179.00
54558	12	G 1/4"	630	1	142.00
54559	12	G 3/8"	315	1	107.00
54560	12	G 3/8"	630	1	137.00
54561	12	G 1/2"	315	1	121.00
54562	12	G 1/2"	630	1	154.00
54563	14	M20 x 1,5	630	1	174.00
54564	14	G 1/2"	630	1	145.00
54565	15	M18 x 1,5	315	1	151.00
54566	15	G 3/8"	315	1	128.00
54567	15	G 1/2"	315	1	130.00
54568	16	M22 x 1,5	400	1	160.00
54569	16	G 1/2"	400	1	154.00
54570	18	M22 x 1,5	315	1	159.00
54571	18	G 3/8"	315	1	151.00
54572	18	G 1/2"	315	1	151.00
54573	20	M27 x 2	400	1	241.00
54574	20	G 3/8"	400	1	213.00
54649	20	G 1/2"	400	1	213.00
54650	20	G 3/4"	400	1	224.00
54651	22	M26 x 1,5	160	1	209.00
54652	22	G 3/4"	160	1	214.00
