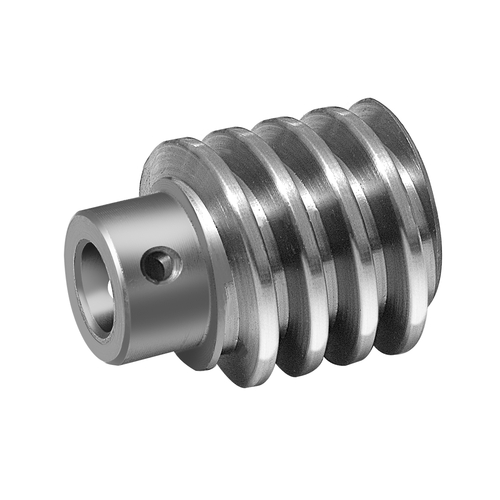

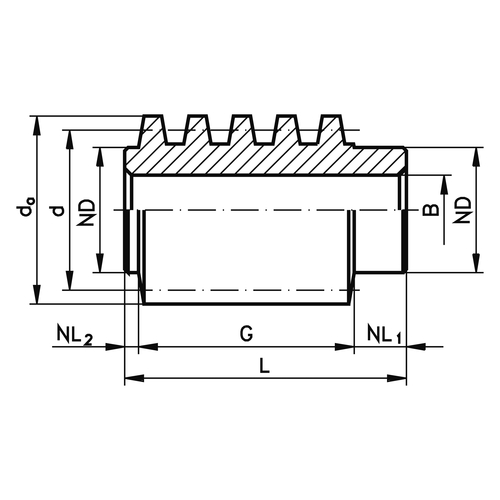

Precision Hollow Worm

Technical specification Material: hollow worm, made of steel 16MnPb30, case hardened and... more

Technical specification

Material: hollow worm, made of steel 16MnPb30, case hardened and ground, inspected for fissures

Bore tolerance: H6

Centre distance tolerance: +0.05 mm

General Information Use for high loads in continuous operation, precision engineering and... more

General Information

Use for high loads in continuous operation, precision engineering and gear manufacturing.

For right angled power transmission with simultaneous vertical offset (= centre distance dimension), even at high speeds.

Precision worms and worm gears for shaft angle 90º

Centre distance (vertical offset) optionally 17; 22.62; 25 and 31 mm

Several transmissions are available per centre distance

The worms and gears only run as a pair at the stated ratio and at the same module

Worm and worm gear have to be ordered separately

Ready-to-mount (with custom bore, need only to be pinned)

High mechanical strength properties

Very quiet running

Good temperature resistance

Right hand

Notes regarding efficiency and self-locking:

Low transmissions (e.g. 5:1) have a high efficiency and a minimum self-locking. High transmissions (with low lead angle) have a low efficiency and a high self-locking. A static self-locking capacity is provided with a lead angle less than ca. 4.5° (lead angle see table).

Item Image Centre distance
mm
Gangzahl Steigungswinkel
Grad
Kopfkreis Ø (da)
mm
Wirkungsgrad
Eta
Übersetzung (x:1) Modul passendes Schneckenrad Gewicht
g
Einheit
Stück
Price
Euro*
Buy
7049371
17 8 48°15' 11,95 0,7 2,25 0,9 704909 7 1 122.00
7049381
17 8 48°15' 11,95 0,7 2,25 0,9 704910 7 3 285.00
704939
17 6 21°5' 13,6 0,65 4,5 0,75 704911 11 1 165.00
704940
17 6 21°5' 13,6 0,65 4,5 0,75 704912 11 3 392.00
704941
17 6 21°37' 12,8 0,65 5 0,7 704913 12 1 165.00
704942
17 6 21°37' 12,8 0,65 5 0,7 704914 12 3 392.00
704943
17 3 14°4' 14,34 0,6 7 1 704915 12 1 173.00
704944
17 3 14°4' 14,34 0,6 7 1 704916 12 3 410.00
704945
17 3 9°4' 14,9 0,55 9 0,75 704917 14 1 147.00
704946
17 3 9°4' 14,9 0,55 9 0,75 704918 14 3 348.00
704947
17 3 11°48' 12,5 0,6 10 0,75 704919 9 1 146.00
704948
17 3 11°48' 12,5 0,6 10 0,75 704920 9 3 342.00
704949
17 2 7°38' 12,8 0,5 15 0,75 704921 10 1 146.00
704950
17 2 7°38' 12,8 0,5 15 0,75 704922 10 3 342.00
704951
17 1 4°32' 13,2 0,4 25 0,9 704923 10 1 165.00
704952
17 1 4°32' 13,2 0,4 25 0,9 704924 10 3 392.00
704953
17 1 3°45' 12,95 0,35 30 0,75 704925 10 1 140.00
704954
17 1 3°45' 12,95 0,35 30 0,75 704926 10 3 329.00
704955
17 1 2°3' 14,98 0,2 40 0,5 704927 16 1 180.00
704956
17 1 2°3' 14,98 0,2 40 0,5 704928 16 3 429.00
7049572
17 1 3°12' 9,95 0,3 50 0,5 704929 5 1 194.00
7049582
17 1 3°12' 9,95 0,3 50 0,5 704930 5 3 458.00
704959
17 1 2°18' 10,75 0,25 60 0,4 704931 8 1 206.00
704960
17 1 2°18' 10,75 0,25 60 0,4 704932 8 3 492.00
704961
17 1 1°28' 12,34 0,2 75 0,3 704933 10 1 194.00
704962
17 1 1°28' 12,34 0,2 75 0,3 704934 10 3 449.00
704963
17 1 1°43' 10,6 0,2 80 0,3 704935 10 1 195.00
704964
17 1 1°43' 10,6 0,2 80 0,3 704936 10 3 453.00
7049791
22,62 7 17°36' 25,15 0,65 3 1 704965 60 1 165.00
7049801
22,62 7 17°36' 25,15 0,65 3 1 704966 60 3 392.00
704981
22,62 5 19°32' 21,2 0,65 4 1,25 704967 35 1 198.00
704982
22,62 5 19°32' 21,2 0,65 4 1,25 704968 35 3 468.00
704983
22,62 3 11°46' 20,9 0,6 7 1,25 704969 34 1 164.00
704984
22,62 3 11°46' 20,9 0,6 7 1,25 704970 34 3 386.00
704985
22,62 2 7°41' 21,2 0,5 10,5 1,25 704971 34 1 183.00
704986
22,62 2 7°41' 21,2 0,5 10,5 1,25 704972 34 3 434.00
704987
22,62 1 3°48' 21,4 0,35 21 1,25 704973 35 1 177.00
704988
22,62 1 3°48' 21,4 0,35 21 1,25 704974 35 3 420.00
704989
22,62 1 2°5' 20 0,25 30 0,9 704975 33 1 189.00
704990
22,62 1 2°5' 20 0,25 30 0,9 704976 33 3 449.00
704991
22,62 1 2°2' 18,6 0,25 40 0,7 704977 28 1 200.00
704992
22,62 1 2°2' 18,6 0,25 40 0,7 704978 28 3 477.00
705013
25 5 20°29' 22,8 0,65 4 1,4 704993 46 1 200.00
705014
25 5 20°29' 22,8 0,65 4 1,4 704994 46 3 473.00
705015
25 4 19°15' 21,2 0,65 5 1,5 704995 37 1 173.00
705016
25 4 19°15' 21,2 0,65 5 1,5 704996 37 3 410.00
705017
25 4 13°52' 21,5 0,6 6,5 1,15 704997 42 1 179.00
705018
25 4 13°52' 21,5 0,6 6,5 1,15 704998 42 3 425.00
705019
25 2 8°48' 22,6 0,5 10 1,5 704999 44 1 186.00
705020
25 2 8°48' 22,6 0,5 10 1,5 705000 44 3 440.00
705021
25 2 6°29' 19,7 0,45 15 1 705001 35 1 188.00
705022
25 2 6°29' 19,7 0,45 15 1 705002 35 3 444.00
705023
25 1 4°19' 22,9 0,35 20 1,5 705003 46 1 189.00
705024
25 1 4°19' 22,9 0,35 20 1,5 705004 46 3 449.00
705025
25 1 2°18' 26,96 0,25 25 1 705005 77 1 194.00
705026
25 1 2°18' 26,96 0,25 25 1 705006 77 3 449.00
705027
25 1 2°53' 21,9 0,25 30 1 705007 46 1 186.00
705028
25 1 2°53' 21,9 0,25 30 1 705008 46 3 440.00
705029
25 1 2°33' 19,56 0,25 40 0,8 705009 37 1 180.00
705030
25 1 2°33' 19,56 0,25 40 0,8 705010 37 3 429.00
705031
25 1 1°43' 21,16 0,2 50 0,6 705011 47 1 203.00
705032
25 1 1°43' 21,16 0,2 50 0,6 705012 47 3 482.00
7050871
31 10 45°15' 20,1 0,7 2,5 1,25 705033 39 1 134.00
7050881
31 10 45°15' 20,1 0,7 2,5 1,25 705034 39 3 318.00
705089
31 7 25°24' 22,9 0,7 4,28 1,25 705035 38 1 194.00
705090
31 7 25°24' 22,9 0,7 4,28 1,25 705036 38 3 458.00
705091
31 6 23°46' 21,95 0,7 5 1,3 705037 52 1 194.00
705092
31 6 23°46' 21,95 0,7 5 1,3 705038 52 3 458.00
705093
31 5 18°13' 23,4 0,65 6 1,3 705039 52 1 194.00
705094
31 5 18°13' 23,4 0,65 6 1,3 705040 52 3 458.00
705095
31 4 20°32' 20,1 0,65 7 1,5 705041 47 1 164.00
705096
31 4 20°32' 20,1 0,65 7 1,5 705042 47 3 386.00
705097
31 3 19°49' 19 0,65 8,33 1,75 705043 29 1 159.00
705098
31 3 19°49' 19 0,65 8,33 1,75 705044 29 3 377.00
705099
31 3 12°5' 21,7 0,65 10 1,4 705045 44 1 152.00
705100
31 3 12°5' 21,7 0,65 10 1,4 705046 44 3 357.00
705101
31 3 13°55' 18,1 0,65 12 1,25 705047 40 1 152.00
705102
31 3 13°55' 18,1 0,65 12 1,25 705048 40 3 357.00
705103
31 2 10°4' 19,2 0,6 15 1,5 705049 32 1 155.00
705104
31 2 10°4' 19,2 0,6 15 1,5 705050 32 3 366.00
705105
31 2 8°44' 18,96 0,55 18 1,25 705051 33 1 150.00
705106
31 2 8°44' 18,96 0,55 18 1,25 705052 33 3 357.00
705107
31 3 7°49' 18,04 0,55 20 0,75 705053 34 1 155.00
705108
31 3 7°49' 18,04 0,55 20 0,75 705054 34 3 366.00
705109
31 2 6°29' 19,7 0,5 22 1 705055 39 1 156.00
705110
31 2 6°29' 19,7 0,5 22 1 705056 39 3 372.00
705111
31 1 7°29' 19,35 0,5 23 2 705057 28 1 167.00
705112
31 1 7°29' 19,35 0,5 23 2 705058 28 3 396.00
705113
31 1 5°4' 23,3 0,45 24 1,75 705059 49 1 167.00
705114
31 1 5°4' 23,3 0,45 24 1,75 705060 49 3 396.00
705115
31 1 5°35' 21,5 0,45 25 1,75 705061 40 1 147.00
705116
31 1 5°35' 21,5 0,45 25 1,75 705062 40 3 348.00
705117
31 1 4°2' 22,85 0,4 28 1,5 705063 49 1 164.00
705118
31 1 4°2' 22,85 0,4 28 1,5 705064 49 3 386.00
705119
31 1 5°7' 19,8 0,4 30 1,5 705065 54 1 155.00
705120
31 1 5°7' 19,8 0,4 30 1,5 705066 54 3 366.00
705121
31 1 4°45' 19,7 0,4 32 1,4 705067 35 1 155.00
705122
31 1 4°45' 19,7 0,4 32 1,4 705068 35 3 372.00
705123
31 1 5°1' 16,8 0,4 38 1,25 705069 24 1 155.00
705124
31 1 5°1' 16,8 0,4 38 1,25 705070 24 3 366.00
705125
31 1 3°23' 18,93 0,35 45 1 705071 36 1 167.00
705126
31 1 3°23' 18,93 0,35 45 1 705072 36 3 396.00
705127
31 1 3°3' 18,7 0,3 50 0,9 705073 35 1 167.00
705128
31 1 3°3' 18,7 0,3 50 0,9 705074 35 3 396.00
705129
31 1 4°12' 14,1 0,35 55 0,9 705075 17 1 165.00
705130
31 1 4°12' 14,1 0,35 55 0,9 705076 17 3 392.00
705131
31 1 2°33' 18,4 0,25 60 0,75 705077 35 1 161.00
705132
31 1 2°33' 18,4 0,25 60 0,75 705078 35 3 386.00
705133
31 1 3°7' 14,3 0,3 70 0,7 705079 19 1 189.00
705134
31 1 3°7' 14,3 0,3 70 0,7 705080 19 3 449.00
705135
31 1 2°2' 18,1 0,25 75 0,6 705081 35 1 189.00
705136
31 1 2°2' 18,1 0,25 75 0,6 705082 35 3 449.00
705137
31 1 1°41' 18 0,2 90 0,5 705083 35 1 200.00
705138
31 1 1°41' 18 0,2 90 0,5 705084 35 3 473.00
705139
31 1 2°24' 12,96 0,25 100 0,5 705085 16 1 192.00
705140
31 1 2°24' 12,96 0,25 100 0,5 705086 16 3 458.00
