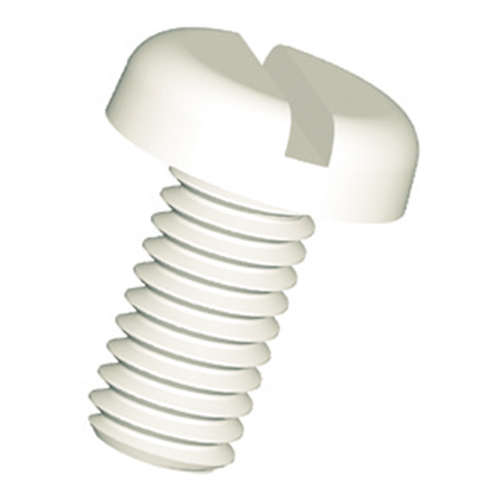

Flachkopfschraube (DIN 85) aus PA - mit Schlitz

Technische Spezifikation Werkstoff: PA 6.6 ( Polyamid 6.6 ) Farbe: natur... mehr

Technische Spezifikation

Werkstoff: PA 6.6 (Polyamid 6.6)

Farbe: natur

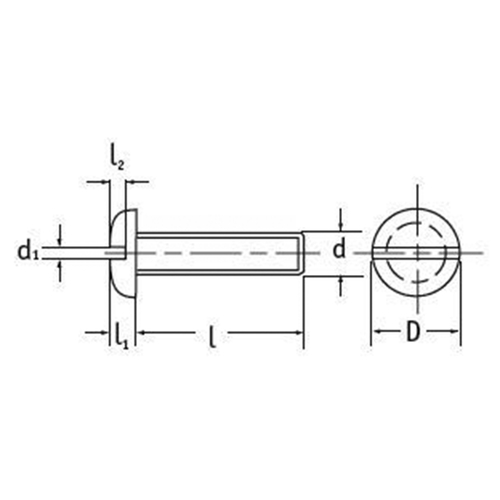

Regelwerk: DIN 85, ISO 1580, NFE 27116, NFE 25128

Allgemeine Information Guter Gleitreibungskoeffizient Hohe mechanische und... mehr

Allgemeine Information

Guter Gleitreibungskoeffizient

Hohe mechanische und Ermüdungsfestigkeit

Hervorragendes Rückstellvermögen

Stoßbelastbar und schlagzäh

Abriebfest

Kältefest

Chemische Charakteristik:

Gute Beständigkeit gegenüber schwachen Laugen, jedoch gegen starke Laugen nur mäßig beständig; beständig gegen aromatische und aliphatische Kohlenwasserstoffe, Kraftstoffe, Mineralöle und mineralische Schmierstoffe; geeignet für Alkohole, Ester, Ketone, Äther und Amine

Werkstoffspezifikation:

Die Polyamide sind universelle Werkstoffe für mechanische Funktionsteile

Die Temperaturbeständigkeit von Polyamid ab -30 bis +100 °C, kurzzeitig +120 °C erlaubt den Einsatz in vielen Industriezweigen

Verbindungsteile aus Polyamid und ähnlichen Kunststoffen schützen vor Rost- und Korrosionsschäden

Besitzen isolierende Eigenschaften und eine erstaunlich hohe Zugfestigkeit

PA kann auch in der Lebensmittelindustrie und in medizinischen Bereichen eingesetzt werden

Beständig gegen Korrosion und Abrieb

Ungiftig und nicht magnetisch

Schwingungsdämpfend

PA 6.6 weist die gleiche chemische Beständigkeit auf wie PA 6

PA 6.6 besitzt gegenüber PA 6 eine höhere Härte, Verschleißfestigkeit und eine etwas höhere Gebrauchstemperatur

PA 6.6 ist jedoch gegenüber PA 6 etwas weniger stoßbelastbar und schlagzäh

Keine Lebensmittelzulassung

Werkstoff: PA 6.6 (Polyamid 6.6)

Farbe: natur

Dichte: 1,14 g/cm3 (DIN 53479)

Temperaturbereich: -30 bis +100 °C

Schmelztemperatur: +255 °C (DIN 53736)

Streckspannung: 83 N/mm2 (ISO 527)

Reißdehnung: 30 % (DIN 53455)

Biegefestigkeit: 115 N/mm2 (DIN 53452)

E-Modul: 3.000 N/mm2 (DIN 53457)

Schlagzähigkeit (Charpy): ohne Bruch (DIN 53453)

Kerbschlagzähigkeit (Izod): 60 J/m (ASTM D 256)

Gleitreibungskoeffizient geg. Stahl (tr.): 0,35 - 0,42

Dielektr. Verlustfaktor (bei 1 MHz): 0,025 (DIN 53483)

Spez. Durchgangswiderstand: 1015 Ohm x cm (DIN 53482)

Oberflächenwiderstand: 1014 Ohm (DIN 53482)

Kriechstromfestigkeit (CTI): >600 V (IEC 112)

Elektr. Durchschlagfestigkeit: ca. 40 kV/mm (DIN 53481)

Wasseraufnahme (Sättigung): ca. 8,5 % (DIN 53495)

Feuchtigkeitsaufnahme (NK-Sättigung): ca. 2,9 % (DIN 53714)

Artikel Bild Außengewinde Gewindelänge
mm
Einheit
Stück
Preis
Euro*
Kaufen
334619
M2 x 0,4 6 50 36,00
334620
M2 x 0,4 6 100 65,00
334621
M2 x 0,4 8 50 36,00
334622
M2 x 0,4 8 100 65,00
334623
M2 x 0,4 10 50 36,00
334624
M2 x 0,4 10 100 65,00
334625
M2 x 0,4 16 50 38,00
334626
M2 x 0,4 16 100 72,00
334627
M2 x 0,4 20 50 38,00
334628
M2 x 0,4 20 100 72,00
334629
M2,5 x 0,45 6 50 36,00
334630
M2,5 x 0,45 6 100 65,00
334631
M2,5 x 0,45 8 50 36,00
334632
M2,5 x 0,45 8 100 65,00
334633
M2,5 x 0,45 10 50 36,00
334634
M2,5 x 0,45 10 100 65,00
334635
M2,5 x 0,45 12 50 38,00
334636
M2,5 x 0,45 12 100 72,00
334637
M2,5 x 0,45 16 50 38,00
334638
M2,5 x 0,45 16 100 72,00
334639
M2,5 x 0,45 20 50 38,00
334640
M2,5 x 0,45 20 100 72,00
334643
M3 x 0,5 5 50 28,00
334644
M3 x 0,5 5 100 48,00
334645
M3 x 0,5 6 50 28,00
334646
M3 x 0,5 6 100 48,00
334647
M3 x 0,5 8 50 28,00
334648
M3 x 0,5 8 100 48,00
334649
M3 x 0,5 10 50 28,00
334650
M3 x 0,5 10 100 48,00
334651
M3 x 0,5 12 50 28,00
334652
M3 x 0,5 12 100 48,00
334653
M3 x 0,5 16 50 28,00
334654
M3 x 0,5 16 100 48,00
334657
M3 x 0,5 20 50 30,00
334658
M3 x 0,5 20 100 51,00
334659
M3 x 0,5 25 50 30,00
334660
M3 x 0,5 25 100 51,00
334661
M3 x 0,5 30 50 30,00
334662
M3 x 0,5 30 100 51,00
334663
M3 x 0,5 35 50 40,00
334664
M3 x 0,5 35 100 68,00
334665
M3 x 0,5 40 50 40,00
334666
M3 x 0,5 40 100 68,00
334667
M4 x 0,7 5 50 27,00
334668
M4 x 0,7 5 100 47,00
334669
M4 x 0,7 6 50 27,00
334670
M4 x 0,7 6 100 47,00
334671
M4 x 0,7 8 50 27,00
334672
M4 x 0,7 8 100 47,00
334673
M4 x 0,7 10 50 27,00
334674
M4 x 0,7 10 100 47,00
334675
M4 x 0,7 12 50 27,00
334676
M4 x 0,7 12 100 47,00
334677
M4 x 0,7 16 50 35,00
334678
M4 x 0,7 16 100 60,00
334681
M4 x 0,7 20 50 35,00
334682
M4 x 0,7 20 100 60,00
334683
M4 x 0,7 25 50 35,00
334684
M4 x 0,7 25 100 60,00
334685
M4 x 0,7 30 50 35,00
334686
M4 x 0,7 30 100 60,00
334687
M4 x 0,7 35 50 35,00
334688
M4 x 0,7 35 100 60,00
334689
M4 x 0,7 40 50 35,00
334690
M4 x 0,7 40 100 60,00
334699
M5 x 0,8 6 50 38,00
334700
M5 x 0,8 6 100 65,00
334701
M5 x 0,8 8 50 38,00
334702
M5 x 0,8 8 100 65,00
334703
M5 x 0,8 10 50 38,00
334704
M5 x 0,8 10 100 65,00
334705
M5 x 0,8 12 50 38,00
334706
M5 x 0,8 12 100 65,00
334707
M5 x 0,8 16 50 38,00
334708
M5 x 0,8 16 100 65,00
334709
M5 x 0,8 20 50 38,00
334710
M5 x 0,8 20 100 65,00
334711
M5 x 0,8 25 50 38,00
334712
M5 x 0,8 25 100 65,00
334713
M5 x 0,8 30 50 48,00
334714
M5 x 0,8 30 100 81,00
334715
M5 x 0,8 35 50 48,00
334716
M5 x 0,8 35 100 81,00
334717
M5 x 0,8 40 50 48,00
334718
M5 x 0,8 40 100 81,00
334719
M5 x 0,8 45 50 48,00
334720
M5 x 0,8 45 100 81,00
334721
M5 x 0,8 50 50 48,00
334722
M5 x 0,8 50 100 81,00
334723
M5 x 0,8 60 25 41,00
334724
M5 x 0,8 60 50 71,00
334725
M5 x 0,8 70 25 41,00
334726
M5 x 0,8 70 50 71,00
334727
M6 x 1 6 50 28,00
334728
M6 x 1 6 100 50,00
334729
M6 x 1 8 50 28,00
334730
M6 x 1 8 100 50,00
334731
M6 x 1 10 50 28,00
334732
M6 x 1 10 100 50,00
334733
M6 x 1 12 50 28,00
334734
M6 x 1 12 100 50,00
334735
M6 x 1 16 50 32,00
334736
M6 x 1 16 100 56,00
334737
M6 x 1 20 50 32,00
334738
M6 x 1 20 100 56,00
334739
M6 x 1 25 50 32,00
334740
M6 x 1 25 100 56,00
334741
M6 x 1 30 50 37,00
334742
M6 x 1 30 100 63,00
334743
M6 x 1 35 50 37,00
334744
M6 x 1 35 100 63,00
334745
M6 x 1 40 50 37,00
334746
M6 x 1 40 100 63,00
334747
M6 x 1 45 50 43,00
334748
M6 x 1 45 100 75,00
334749
M6 x 1 50 50 43,00
334750
M6 x 1 50 100 75,00
334751
M6 x 1 60 50 43,00
334752
M6 x 1 60 100 75,00
334753
M6 x 1 80 50 58,00
334754
M6 x 1 80 100 99,00
334755
M6 x 1 90 25 50,00
334756
M6 x 1 90 50 82,00
334757
M6 x 1 100 25 54,00
334758
M6 x 1 100 50 90,00
334759
M8 x 1,25 8 50 48,00
334760
M8 x 1,25 8 100 80,00
334761
M8 x 1,25 10 50 48,00
334762
M8 x 1,25 10 100 80,00
334763
M8 x 1,25 12 50 56,00
334764
M8 x 1,25 12 100 90,00
334765
M8 x 1,25 16 50 56,00
334766
M8 x 1,25 16 100 90,00
334767
M8 x 1,25 20 50 56,00
334768
M8 x 1,25 20 100 90,00
334769
M8 x 1,25 25 50 57,00
334770
M8 x 1,25 25 100 96,00
334771
M8 x 1,25 30 25 33,00
334772
M8 x 1,25 30 50 54,00
334773
M8 x 1,25 35 25 33,00
334774
M8 x 1,25 35 50 54,00
334775
M8 x 1,25 40 25 36,00
334776
M8 x 1,25 40 50 60,00
334777
M8 x 1,25 45 25 36,00
334778
M8 x 1,25 45 50 60,00
334779
M8 x 1,25 50 25 41,00
334780
M8 x 1,25 50 50 70,00
334781
M8 x 1,25 60 25 41,00
334782
M8 x 1,25 60 50 70,00
334783
M8 x 1,25 80 25 53,00
334784
M8 x 1,25 80 50 89,00
334785
M8 x 1,25 90 10 33,00
334786
M8 x 1,25 90 20 54,00
334787
M8 x 1,25 100 10 36,00
334788
M8 x 1,25 100 20 58,00
334789
M10 x 1,5 6 25 35,00
334790
M10 x 1,5 6 50 57,00
334791
M10 x 1,5 8 25 35,00
334792
M10 x 1,5 8 50 57,00
334793
M10 x 1,5 10 25 35,00
334794
M10 x 1,5 10 50 57,00
334795
M10 x 1,5 12 25 37,00
334796
M10 x 1,5 12 50 61,00
334797
M10 x 1,5 16 25 37,00
334798
M10 x 1,5 16 50 61,00
334799
M10 x 1,5 20 25 41,00
334800
M10 x 1,5 20 50 71,00
334801
M10 x 1,5 25 25 41,00
334802
M10 x 1,5 25 50 71,00
334803
M10 x 1,5 30 25 44,00
334804
M10 x 1,5 30 50 75,00
334805
M10 x 1,5 35 25 44,00
334806
M10 x 1,5 35 50 75,00
334807
M10 x 1,5 40 25 47,00
334808
M10 x 1,5 40 50 78,00
334809
M10 x 1,5 45 25 52,00
334810
M10 x 1,5 45 50 88,00
334811
M10 x 1,5 50 25 52,00
334812
M10 x 1,5 50 50 88,00
334813
M10 x 1,5 60 20 47,00
334814
M10 x 1,5 60 40 78,00
334815
M10 x 1,5 80 20 55,00
334816
M10 x 1,5 80 40 90,00
334817
M12 x 1,75 16 25 45,00
334818
M12 x 1,75 16 50 78,00
334819
M12 x 1,75 20 25 45,00
334820
M12 x 1,75 20 50 78,00
334821
M12 x 1,75 25 25 50,00
334822
M12 x 1,75 25 50 82,00
334823
M12 x 1,75 30 25 50,00
334824
M12 x 1,75 30 50 82,00
334825
M12 x 1,75 35 25 53,00
334826
M12 x 1,75 35 50 87,00
334827
M12 x 1,75 40 25 56,00
334828
M12 x 1,75 40 50 93,00
334829
M12 x 1,75 45 25 58,00
334830
M12 x 1,75 45 50 95,00
334831
M12 x 1,75 50 25 58,00
334832
M12 x 1,75 50 50 95,00
334833
M12 x 1,75 60 25 65,00
334834
M12 x 1,75 60 50 106,00
334835
M12 x 1,75 80 10 28,00
334836
M12 x 1,75 80 25 50,00
